HPE3-U01 Exam Practice Questions prepared by HP Professionals [Q18-Q38]

Rate this post

HPE3-U01 Exam Practice Questions prepared by HP Professionals

Use Valid New HPE3-U01 Questions – Top choice Help You Gain Success

Q18. Which Wi-Fi frame announces the Service Set Identifier (SSID) to Basic Service Set Identifier (BSSID) mapping?

association request

probe request

beacon

network allocation vector

Q19. What are the key differences between L2 switches and routers? (Select two.)

Switches build an ARP table, while routers build a port table.

Switches build a MAC table while routers build a routing table.

Switches are considered L2 devices, while routers are L4.

Switches offer a considerably higher port density than routers.

Routers offer a considerably higher port density than switches.

Q20. Given the 172.16.0.0 255.255.255.0 IP segment, how many IP addresses can be assigned to host and network devices?

126

128

Q21. Whichcondition allows 5Ghz channels to avoid Adjacent Channel Interference?

transmit at 40 MHz bandwidth

transmit at high power levels

transmit at low power levels

transmit at 20 MHz bandwidth

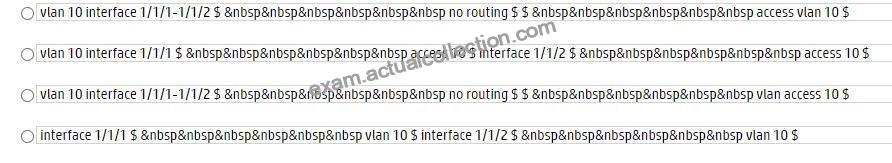

Q22. Which commands are required to configure interfaces 1 /1/1 and 1 /1/2 as VLAN 10 access ports in ArubaOS-CX switches?

Option A

Option B

Option C

Option D

Q23. Which device provides high ethernet port density for connecting wired clients such as computers, IP phones, and printers? (Select two.)

Wireless Router

Router

Access Point

Multilayer Switches

Switches

Q24. What is a true statement about wireless communications using Wi-Fi?

Amplitude, phase, and frequency of radio waves are modulated to transmit data

Wireless communications have a maximum range of 10 meters (30 feet)

Amplitude, phase, and frequency of radio waves are modulated to increase range

Wireless communications have a minimum range of 10 meters (30 feet)

Q25. Which characteristic allows switches to mitigate collisions?

The switches support VLANs that segment the collision domains.

The switches use L3 protocols that eliminate collisions.

The switches’ ports are independent collision domains.

The switches have proprietary features that help eliminate collisions.

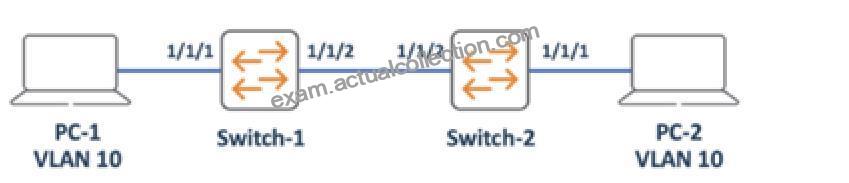

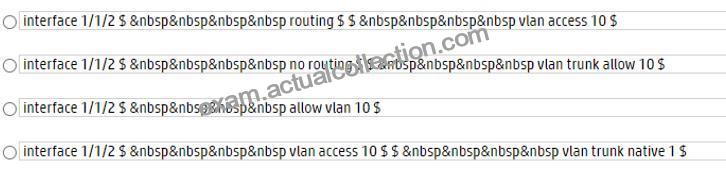

Q26. Refer to Exhibit.

PC-1 and PC-2 are connected to Interfaces configured as access ports on VLAN 10. All other ports on Switch-1 and Switch-2 are in default settings. Which configuration is required on Doth switches to allow inter-PC communication in the same Broadcast domain?

Option A

Option B

Option C

Option D

Q27. Which unit of measurement is recommended for expressing radio frequency power due to its logarithmic nature?

lumens

decibel relative to isotrope (dBi)

milliwatt (mW)

decibel relative to milliwatt (dBm)

Explanation
Decibel (dB)Decibel is a logarithmic unit of measure used to express the ratio of two values of the same measure. This unit is not included to the System International of units (SI), but it is widely used in communication systems and many other technical fields, as it allows to compare two values of any nature, provided that these values are expressed in the same unit.
Decibel is a decile of the main, larger unit – Bel. Bel is a common logarithm of the ratio of two energies. But in practice Bel was a far too big value, therefore its tenth part is used – decibel.
The logarithmic method of presentation of numbers often can be very useful, as it allows to replace multiplication with addition, division with subtraction, raising to power with multiplication, and extracting a root with the division.
What is measured in dB in the MRFC:
* Gain constant
* Sound level
* Signal/noise ratio
* Signal attenuation
https://en.cyclopedia.ifcg.ru/wiki/Radiofrequency_characteristics

Q28. How many addresses does the 255.255.252.0 provide?

16384

32768

8192

1024

Q29. Which protocol provides frame delivery using physical addressing and error detection using frame check sequence?

Link Layer Discovery Protocol

Ethernet

TCP/IP

User Datagram Protocol

Q30. What is the decimal equivalent of the binary number 10001010?

138

198

108

Q31. Which table must clients populate to remember the L2 addressing of their neighbors?

MAC Table

ARP Table

Routing Table

Ethernet Table

Q32. Which message is an example of Broadcast communication?

DHCP offer

ICMPecho

HTTP Get

ARP Request

Q33. Which commands can you use to save the switch configuration changes, so they survive a switch reboot?
(Select two.)

copy running-config checkpoint backup

store memory

write memory

copy running-config checkpoint startup-config

save memory

Q34. Which protocols operate on the Management Plane? (Select two.)

Transmission Control Protocol

Address Resolution Protocol

Spanning Tree Protocol

Hypertext Transfer Protocol Secure

Secure Shell

Q35. What is part of the 5 GHz band?

Channel 12 and 13

U-NII 5

Channels 149 to 161

Channel14

Q36. Which statements are true about a router? (Select two.)

They are considered layer two devices.

They utilize protocols to learn all possible paths.

They are considered layer four devices.

They are considered layer three devices.

They analyze source addresses to learn paths.

Q37. Which organization provides certifications that ensure interoperability between WLAN vendors?

Institute of Electrical and Electronics Engineers

Federal Communications Commission

Wi-Fi Alliance

Internet Engineering Task Force

Explanation
https://www.wi-fi.org/certification

Q38. Refer to Exhibit.

The PCs are not able to successfully establish bidirectional communication. What change must you deploy to enable the communication between PC-1 and PC-2?

change PC-1 ‘s default gateway to 172.16.30.2

change PC-1’s IP address to 172.16.30.10

change the Router’s 1/1/1 interface IP to 172.16.30.254

change PC-2’s default gateway to 172.16.31.254
