The show interface breakout port slot/slot command displays the breakout modes available for the specified port. Breakout modes determine how a single high-speed port can be split into multiple lower-speed ports, providing flexibility in network port configurations.
References:
* Dell Technologies SONiC Command Reference Guide
* Port Breakout Configuration Guide

An iBGP (Internal Border Gateway Protocol) neighbor relationship is established between two BGP routers within the same autonomous system (AS). This relationship allows for the exchange of routing information within the AS, ensuring that internal routes are propagated correctly.
References:
* Dell Technologies SONiC Routing Guide
* BGP Configuration Guide

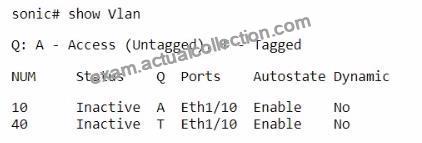

* Configure the access mode for the switch port (A): This involves setting the switch port to operate in access mode.
* Remove the current access VLAN configuration (D): Before changing the VLAN, the current configuration must be cleared.
* Enter it into the relevant interface (E): Apply the new configuration to the specific interface, Eth1/10.
Steps:
* interface Ethernet 1/10
* no switchport access vlan <current VLAN> (Remove current VLAN)
* switchport mode access
* switchport access vlan 40
References:
* Dell Technologies SONiC documentation
* Dell Networking Configuration Guide

* Network Topology Analysis:
* PC1 is on VLAN 10 with an IP address in the 192.168.10.0/24 subnet.
* PC2 is on VLAN 20 with an IP address in the 192.168.20.0/24 subnet.
* The network uses OSPF for routing between the switches.
* The OSPF area is 0, and all switches have loopback interfaces for OSPF.
* Routing Table Examination (from switch1):
* The show ip route command output from switch1 provides a detailed look at the routing table.
* Routes to the 192.168.10.0/24 network (directly connected via Vlan10) are present.
* No routes to the 192.168.20.0/24 network are listed in switch1’s routing table.
* Explanation:
* For PC1 to communicate with PC2, switch1 must have a route to the 192.168.20.0/24 network.
* The absence of a route to the 192.168.20.0/24 network in switch1’s routing table means that switch1 cannot forward packets destined for 192.168.20.0/24.
* Therefore, any ping from PC1 to PC2 will be unsuccessful as switch1 does not know how to route packets to PC2’s network.
* Verification with Dell SONiC:
* In Dell SONiC environments, OSPF is configured to ensure dynamic routing.
* The configuration must include all necessary networks for inter-switch routing.
* If a network (like 192.168.20.0/24) is not included in OSPF configurations on switch1, routes to that network will not be advertised or learned, leading to failed connectivity tests like the ping from PC1 to PC2.
References:
* Dell Enterprise SONiC Deployment Guide
* Dell Technologies Networking – SONiC

* VLAN translation is not supported on MC-LAG port channel interfaces (A): This is a restriction commonly seen in network configurations involving Multi-Chassis Link Aggregation (MC-LAG) where VLAN translation capabilities are not applied.
* Trunk or access ports can be configured as members of any VLANs that are not used as an SVLAN (B): This ensures that the VLAN configuration on trunk or access ports is flexible and does not overlap with Service VLANs (SVLANs).
* SVLAN configuration for both Q-in-Q VLAN tunneling and VLAN translation is possible on the same interface (E): This allows for complex VLAN tagging and translation configurations to be applied to the same interface, supporting advanced networking scenarios.
References:
* Dell Technologies SONiC documentation
* Dell Networking Configuration Guide

The QSFP28 ports on an S5248F switch support multiple modes, including 1x100G, 1x40G, 2x50G, and
4x25G. These modes provide flexibility in network design and enable the switch to support different types of network connections and bandwidth requirements.
References:
* Dell S5248F Switch Data Sheet
* Dell Technologies InfoHub

The ztp enable command is used to administratively enable the Zero Touch Provisioning (ZTP) process on the switch. This process allows the switch to automatically download and apply configuration files upon boot-up without manual intervention. The show ztp status command is used to check on the progress and status of the ZTP process, providing information about whether the process is active, completed, or encountered any issues.
References:
* Dell Technologies SONiC documentation
* Dell Networking Configuration Guide

* Dell SONiC Management Interface Configuration:
* In Dell SONiC, the management port configuration is a crucial aspect that allows administrators to access and manage the network device.
* The management interface typically provides out-of-band management access to the device, ensuring that even if the data network is down, the management network can still be accessed.
* Common Interface Naming Conventions:
* mgmt 1/1/1: This naming convention is not typically used in Dell SONiC environments for management interfaces.
* ma 0/1: This could be a potential naming convention but is not standard for Dell SONiC.
* Management 0: This is a logical name but does not align with the standard interface naming conventions used in Dell SONiC.
* eth0: This is the standard naming convention used for the primary management interface in most Linux-based systems, including Dell SONiC.
* Verification with Dell SONiC Documentation:
* Dell SONiC documentation specifies that the management interface is usually named eth0.
* When accessing the management interface within the MF-CLI (Management Framework Command Line Interface) environment, eth0 is the correct interface to configure.
* Practical Configuration Example:
* When configuring the management port, the command might look something like:
config interface ip add eth0 <management_ip_address>/<subnet_mask>
* This command specifies the management interface eth0 and assigns it an IP address for network management purposes.
References:
* Dell Enterprise SONiC Deployment Guide
* Dell Technologies Networking – SONiC
This detailed step-by-step explanation confirms that the correct answer is D, providing insights into the typical interface naming conventions and configuration practices within the Dell SONiC environment.

The exhibit shows a BGP EVPN route in a VXLAN environment. The route type can be determined based on the details provided. Type 2 routes in BGP EVPN are used to advertise MAC address reachability information between VTEPs (Virtual Tunnel End Points). The exhibit indicates a host route from another VTEP, which corresponds to a Type 2 route.
References:
* Dell Technologies SONiC documentation
* BGP EVPN Configuration Guide

see the explanation for all step by step solution with all explanation.
Explanation:
Here are the steps to configure the required port channel and VLAN settings on Switch A:
* Enter Configuration Mode:
SwitchA# configure terminal
* Create Port Channel 10:
SwitchA(config)# interface port-channel 10
SwitchA(config-if-po10)# switchport mode trunk
SwitchA(config-if-po10)# switchport trunk native vlan 1
SwitchA(config-if-po10)# switchport trunk allowed vlan 1,10
* Assign Interfaces Eth 1/11 and Eth 1/12 to Port Channel 10:
SwitchA(config)# interface ethernet 1/11
SwitchA(config-if-eth1/11)# channel-group 10 mode active
SwitchA(config-if-eth1/11)# exit
SwitchA(config)# interface ethernet 1/12
SwitchA(config-if-eth1/12)# channel-group 10 mode active
SwitchA(config-if-eth1/12)# exit
* Configure Interface Eth 1/1 for Server Connection:
SwitchA(config)# interface ethernet 1/1
SwitchA(config-if-eth1/1)# switchport mode trunk
SwitchA(config-if-eth1/1)# switchport trunk native vlan 1
SwitchA(config-if-eth1/1)# switchport trunk allowed vlan 1,10
SwitchA(config-if-eth1/1)# end
* Save Configuration:
SwitchA# write memory
Comprehensive Detailed Step by Step Explanation with References:
* Enter Configuration Mode:
* Start by entering the global configuration mode to make changes to the switch configuration.
* Create Port Channel 10:
* Enter the port channel interface configuration mode using interface port-channel 10.
* Set the port channel to trunk mode with switchport mode trunk.
* Specify VLAN 1 as the native VLAN (untagged) using switchport trunk native vlan 1.
* Allow VLANs 1 and 10 on the trunk with switchport trunk allowed vlan 1,10.
* Assign Interfaces Eth 1/11 and Eth 1/12 to Port Channel 10:
* Enter interface configuration mode for ethernet 1/11 and ethernet 1/12.
* Assign each interface to port channel 10 using the channel-group 10 mode active command.
* Exit the interface configuration mode.
* Configure Interface Eth 1/1 for Server Connection:
* Enter interface configuration mode for ethernet 1/1.
* Set the interface to trunk mode with switchport mode trunk.
* Specify VLAN 1 as the native VLAN using switchport trunk native vlan 1.
* Allow VLANs 1 and 10 on the trunk with switchport trunk allowed vlan 1,10.
* Exit the configuration mode.
* Save Configuration:
* Ensure the configuration is saved so it persists after a reboot using the write memory command.
References:
* Dell Technologies Networking – SONiC
* Dell Enterprise SONiC Deployment Guide
These steps provide a comprehensive guide to configure a port channel and VLAN settings on Switch A to meet the specified requirements for server and trunk connections.

In a symmetric Integrated Routing and Bridging (IRB) overlay network, the Source Virtual Tunnel End Point (VTEP) and the Destination VTEP route unencapsulated user traffic. Symmetric IRB ensures that routing occurs at both the ingress and egress VTEPs, allowing for optimized traffic flow and efficient network operations.
References:
* Dell Technologies SONiC documentation
* VXLAN Configuration Guide

see the explanation for all step by step solution with all explanation.
Explanation:
Here are the steps to configure the required VLAN translations on a Dell SONiC switch:

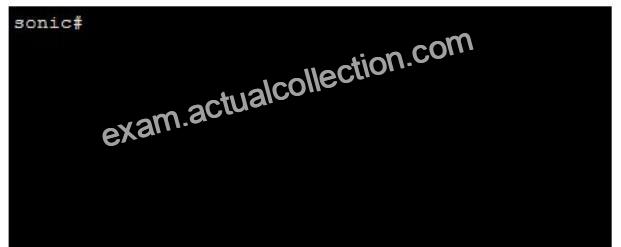

* Map a Single-Tagged CVLAN 100 to SVLAN 200 on Interface Eth1/1:
sonic# configure terminal
sonic(config)# interface Ethernet1/1
sonic(config-if-Ethernet1/1)# switchport mode trunk
sonic(config-if-Ethernet1/1)# switchport vlan mapping 100 200
sonic(config-if-Ethernet1/1)# end
sonic# write memory
* Map a Double-Tagged VLAN Packet with Outer CVLAN 100 and Inner dot1q 200 to SVLAN 300 on Interface Eth1/2:
sonic# configure terminal
sonic(config)# interface Ethernet1/2
sonic(config-if-Ethernet1/2)# switchport mode trunk
sonic(config-if-Ethernet1/2)# switchport vlan mapping 100 200 300
sonic(config-if-Ethernet1/2)# end
sonic# write memory
Comprehensive Detailed Step by Step Explanation with References:
* Enter Configuration Mode:
* Access the global configuration mode using the configure terminal command.
* Configure Interface Eth1/1:
* Enter interface configuration mode for Ethernet1/1 using the command interface Ethernet1/1.
* Set the switchport mode to trunk with the command switchport mode trunk.
* Configure the VLAN translation using the switchport vlan mapping 100 200 command, which maps CVLAN 100 to SVLAN 200.
* Exit the interface configuration mode by typing end.
* Save the configuration with write memory.
* Configure Interface Eth1/2:
* Enter interface configuration mode for Ethernet1/2 using the command interface Ethernet1/2.
* Set the switchport mode to trunk with the command switchport mode trunk.
* Configure the double-tagged VLAN translation using the switchport vlan mapping 100 200 300 command, which maps packets with outer CVLAN 100 and inner dot1q 200 to SVLAN 300.
* Exit the interface configuration mode by typing end.
* Save the configuration with write memory.
References:
* Dell Technologies Networking – SONiC
* Dell Enterprise SONiC Deployment Guide
These steps provide a comprehensive guide to configure VLAN translations on a Dell SONiC switch, ensuring that the specific requirements for single-tagged and double-tagged VLAN mappings are met.

The output of the command show qos wred-policy pfc34 shows the ECN (Explicit Congestion Notification) configuration for the policy pfc34. The line ecn: ecn_all indicates that ECN is enabled for all traffic classes (all DSCP values). Additionally, the green-min-threshold, green-max-threshold, and green-drop-probability settings are shown, but there is no indication of a 10% probability for marking traffic as congested. Therefore, the correct answer is B.
References:
* Dell Enterprise SONiC documentation
* Dell Technologies InfoHub

BGP EVPN (Border Gateway Protocol Ethernet VPN) is used in a VXLAN fabric to distribute MAC address reachability information between switches. In this scenario, Switch 1 uses BGP EVPN to advertise the locally learned MAC addresses to Switch 2. This distribution of MAC addresses enables the switches to build and maintain an efficient forwarding table, facilitating communication across the VXLAN fabric.
References:
* Dell Technologies SONiC documentation
* BGP EVPN Configuration Guide

According to the Dell SONiC documentation, a single physical port can be a member of only one port channel at a time. This restriction ensures the consistency and integrity of link aggregation configurations.
References:
* Dell Networking SONiC: How to Configure Port Channels
* Dell Technologies InfoHub

Enterprise SONiC can be upgraded or downgraded using:
* Boot Loader (A): The boot loader can be used to select and load different versions of the SONiC firmware.
* GRUB (D): GRUB (Grand Unified Bootloader) is another method used to manage and select different SONiC firmware versions during system boot-up.
References:
* Dell Technologies SONiC documentation
* SONiC Upgrade Guide

see the explanation for all step by step solution with all explanation.
Explanation:

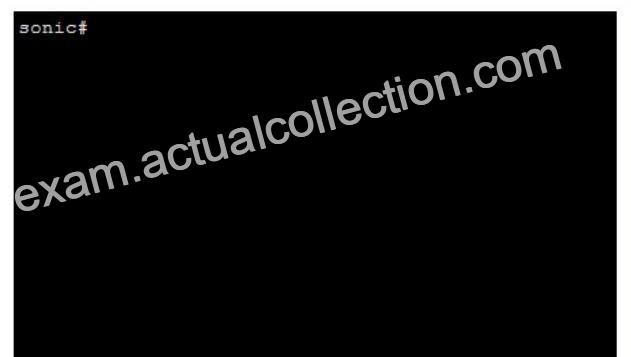

Here are the steps to configure the VRF and the static route:
* Enter Configuration Mode:
sonic# configure terminal
* Create VRF “VrfGreen”:
sonic(config)# ip vrf VrfGreen
* Configure the Static Route:
sonic(config)# ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213
* Save Configuration:
sonic# write memory
Comprehensive Detailed Step by Step Explanation with References:
* Enter Configuration Mode:
* Begin by entering the global configuration mode to make changes to the switch configuration.
* Create VRF “VrfGreen”:
* Use the command ip vrf VrfGreen to create a new VRF named “VrfGreen”. This command sets up a new VRF instance which will isolate the routing table for this VRF from the global routing table and other VRFs.
* Configure the Static Route:
* Use the command ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213 to configure the static route.
* ip route vrf VrfGreen specifies that the route should be added to the “VrfGreen” VRF.
* 172.16.128.64/28 is the destination network.
* 10.10.10.1 is the next-hop IP address.
* 213 is the administrative distance, which in this case is set to a non-default value to influence route preference.
* Save Configuration:
* Save the configuration to ensure the changes persist after a reboot using the write memory command.
References:
* Dell Technologies Networking – SONiC
* Dell Enterprise SONiC Deployment Guide
These steps provide a comprehensive guide to configure a VRF and a static route within that VRF on a SONiC-based switch, ensuring the specific requirements for routing and administrative distance are met.

When installing Enterprise SONIC from an HTTP server using the Open Network Install Environment (ONIE), the management interface typically used for network installations is eth0. This is the default interface ONIE uses for network connectivity to retrieve installation images and other configuration files.
References:
* Dell Technologies SONiC documentation
* ONIE User Guide

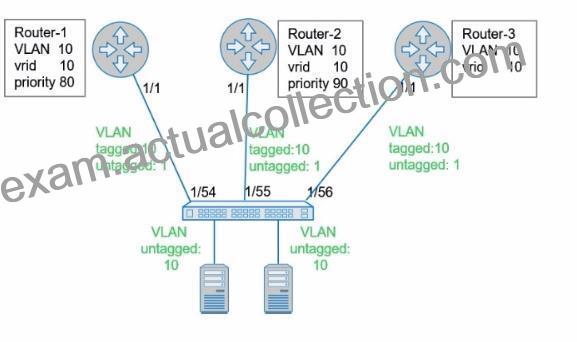

Based on the exhibit, Router-2 has the highest priority (90) in VRRP group 10. In VRRP, the router with the highest priority becomes the primary (master) router. Therefore, Router-2 is the primary VRRP router for VRRP group 10.
References:
* Dell Technologies SONiC VRRP Configuration Guide
* VRRP Protocol Overview
