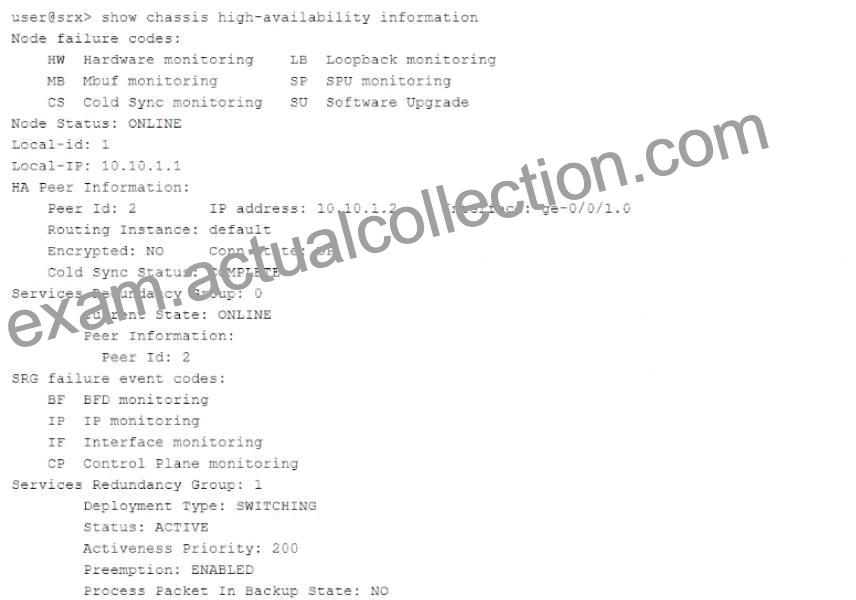

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:
* Two Services Redundancy Groups (Correct: Option A):The output shows the status ofSRG 0and SRG 1, confirming that there are two services redundancy groups in the HA configuration.
* Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates thatNode 1is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.
* Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.
Juniper References:
* Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.
Understanding the Problem:
* Local Network (Office A): 192.168.100.0/24
* Branch Office (Office B): 192.168.100.0/24
* Objective: Allow communication between Office A and Office B despite overlapping IP ranges.
Solution Overview:
To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.
Option B and Option C implement Static NAT to resolve the issue:
* Option B (At Office A):
* Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.
* This allows Office B to reach Office A’s overlapping network by targeting a unique IP range (
192.168.200.0/24).
* Option C (At Office B):
* Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.
* This allows Office A to reach Office B’s overlapping network by targeting a unique IP range (
192.168.210.0/24).
Detailed Explanation:
1. Static NAT Configuration at Office A (Option B):
* Configuration:
[edit security nat static]
user@OfficeA# show rule-set From-Office-B {
from interface ge-0/0/0.0;
rule 1 {
match {
destination-address 192.168.200.0/24;
}
then {
static-nat {
prefix { 192.168.100.0/24; }
}
}
}
}
* Explanation:
* from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.
* Matching Traffic:
* destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.
* Action:
* static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to
192.168.100.0/24.
* Result:
* Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

To control access to network resources based on the identity of an authenticated device on the SRX Series firewalls, you need to perform the following steps:
A) Configure an end-user-profile that characterizes a device or set of devices. An end-user-profile is a device identity profile that contains a collection of attributes that are characteristics of a specific group of devices, or of a specific device, depending on the attributes configured in the profile. The end-user- profile must contain a domain name and at least one value in each attribute. The attributes include device-identity, device-category, device-vendor, device-type, device-os, and device-os-version1. You can configure an end-user-profile by using the Junos Space Security Director or the CLI2.
C) Reference the end-user-profile in the security policy. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You can reference the end-user-profile in the source-end-user- profile field of the security policy to identify the traffic source based on the device from which the traffic issued. The SRX Series device matches the IP address of the device to the end-user-profile and applies the security policy accordingly3. You can reference the end-user-profile in the security policy by using the Junos Space Security Director or the CLI4.
E) Configure the authentication source to be used to authenticate the device. An authentication source is a system that provides the device identity information to the SRX Series device. The authentication source can be Microsoft Windows Active Directory or a third-party network access control (NAC) system.
You need to configure the authentication source to be used to authenticate the device and to send the device identity information to the SRX Series device. The SRX Series device stores the device identity information in the device identity authentication table5. You can configure the authentication source by using the Junos Space Security Director or the CLI6.
The other options are incorrect because:
B) Referencing the end-user-profile in the security zone is not a valid step to control access to network resources based on the identity of an authenticated device. A security zone is a logical grouping of interfaces that have similar security requirements. You can reference the user role in the security zone to identify the user who is accessing the network resources, but not the end-user-profile7.
D) Applying the end-user-profile at the interface connecting the devices is also not a valid step to control access to network resources based on the identity of an authenticated device. You cannot apply the end- user-profile at the interface level, but only at the security policy level. The end-user-profile is not a firewall filter or a security policy, but a device identity profile that is referenced in the security policy1.
Reference: End User Profile Overview Creating an End User Profile source-end-user-profile Creating Firewall Policy Rules Understanding the Device Identity Authentication Table and Its Entries Configuring the Authentication Source for Device Identity user-role

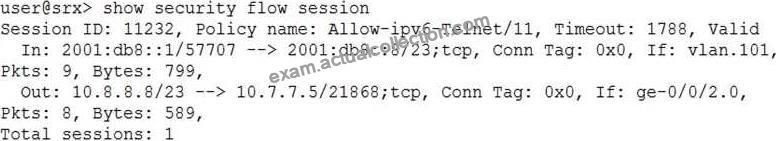

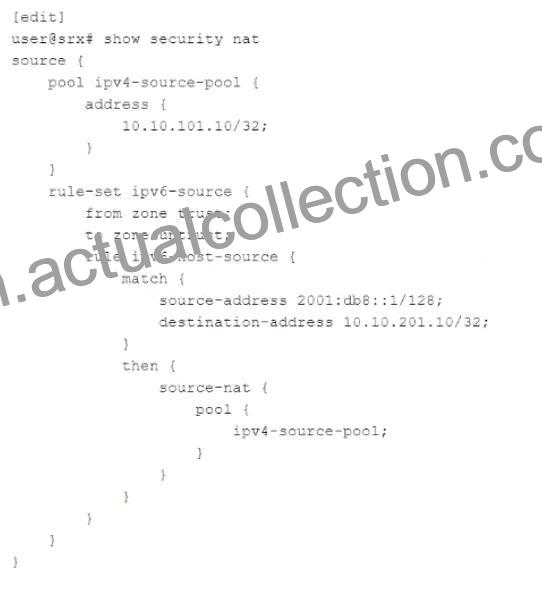

In the scenario described, you are configuring NAT64, which allows communication between IPv6 and IPv4 networks by translating IPv6 packets to IPv4 and vice versa. The configuration in the exhibit shows an attempt to translate traffic coming from the IPv6 address 2001:db8::1/128 and destined for the IPv4 address
10.10.201.10/32.
However, the issue here is related to the return traffic. For NAT64 to function correctly, you must ensure that the return traffic (from the IPv4 network) is translated back to the original IPv6 source address. Without proper translation of the return traffic, the communication will not be successful. In this case, you needsource NATto handle the return traffic correctly.
Detailed Solution:
* In NAT64, when traffic originates from an IPv6 network and is translated to IPv4, the return traffic from the IPv4 network must be translated back to the original IPv6 address usingsource NAT.
* The source NAT configuration must include translation for the return path from IPv4 to IPv6 to ensure bidirectional communication.
Configuration Example:
To resolve the issue, you can configure source NAT on the SRX device to handle the translation of the return traffic as follows:
* Configure Source NAT for Return Traffic:You need to configure source NAT on the interface handling the return traffic. This will translate the IPv4 address back to the IPv6 source address.
Example:
bash
Copy code
set security nat source rule-set ipv4-source-rule from zone untrust
set security nat source rule-set ipv4-source-rule to zone trust
set security nat source rule-set ipv4-source-rule rule source-nat-translation match source-address 10.10.201.10
/32
set security nat source rule-set ipv4-source-rule rule source-nat-translation then source-nat pool ipv6-source- pool
* Ensure Proper Routing and Security Policy Configuration:Make sure that both the IPv4 and IPv6 routes are correctly defined, and that security policies are allowing the return traffic through.
Use the following commands to verify the NAT and policy configurations:
bash
Copy code
show security nat source
show security policies
By configuring source NAT to translate the return traffic back to IPv6, the communication between the IPv6 host and the IPv4 server should now work correctly.
Juniper Security Reference:
* NAT64 Overview: This functionality allows IPv6 clients to communicate with IPv4-only servers. For successful translation, NAT64 requires both source NAT and destination NAT to handle the bidirectional traffic. Reference: Juniper Networks Documentation on NAT64.

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:
* Two Services Redundancy Groups (Correct: Option A):The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.
* Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.
* Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.
Juniper References:
* Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

To enable advanced policy-based routing in Junos OS and activate a static route with a next-hop address in the inet.0 table within your routing instance, you should utilize RIB groups. RIB groups allow you to import routes from one routing table to another. In this scenario, the static route within the routing instance needs access to the inet.0 routes, which is facilitated by configuring a RIB group. Juniper’s documentation outlines RIB groups as a necessary component for handling instances where routes need to be shared across routing tables, thereby ensuring seamless traffic flow through specified routes. For more details, refer to the Juniper Networks Documentation on RIB Groups.
In Junos OS for SRX Series devices, when enabling advanced policy-based routing and configuring a static route with a next-hop from the inet.0 routing table, the issue arises because the static route is not being used in the routing instance. This is a common scenario when the next-hop belongs to a different routing table or instance, and the routing instance is not aware of that next-hop.
To resolve this,RIB (Routing Information Base) groupsare used. RIB groups allow routes from one routing table (RIB) to be shared or imported into another routing table. This means that the routing instance can import the necessary routes from inet.0 and make them available for the routing instance where the policy- based routing is applied.
Detailed Steps:
* Configure the Static Route:First, configure the static route pointing to the next-hop in inet.0. Here’s an example:
bash
Copy code
set routing-options static route 10.1.1.0/24 next-hop 192.168.1.1
This static route will be placed in the inet.0 routing table by default.
* Create and Apply a RIB Group:To import routes from inet.0 into the routing instance, create a RIB group configuration. This will allow the static route from inet.0 to be visible within the routing instance.
Example configuration for the RIB group:
bash
Copy code
set routing-options rib-groups RIB-GROUP import-rib inet.0
set routing-options rib-groups RIB-GROUP import-rib <routing-instance-name>.inet.0 This configuration ensures that routes from inet.0 are imported into the specified routing instance.
* Apply the RIB Group to the Routing Instance:Once the RIB group is configured, apply it to the appropriate routing instance:
bash
Copy code
set routing-instances <routing-instance-name> routing-options rib-group RIB-GROUP
* Verify Configuration:Use the following command to verify that the static route has been imported into the routing instance:
bash
Copy code
show route table <routing-instance-name>.inet.0
The output should now display the static route imported from inet.0.
Juniper Security Reference:
* RIB Groups Overview: Juniper’s documentation provides detailed information on how RIB groups function and how to use them to share routes between different routing tables. This is essential for scenarios involving policy-based routing where routes from one instance (like inet.0) need to be available in another instance. Reference: Juniper Networks Documentation on RIB Groups.
By using RIB groups, you ensure that the static route from inet.0 is available in the appropriate routing instance for policy-based routing to function correctly. This avoids the need for other methods like filter- based forwarding or transparent mode, which do not address the specific issue of static route visibility across routing instances.
