[Feb 03, 2023] Pass Cisco 300-515 Exam Info and Free Practice Test

300-515 Exam Dumps PDF Updated Dump from ActualCollection Guaranteed Success

QUESTION 16
Which tool identifies the point of failure in a P2MP LSP from the ingress LSR?

Jitter TLV

SPAN

P2MP traceroute

P2MP ping

QUESTION 17
Refer to the exhibit.

An engineer has configured router 1 to provide shared services to clients behind router 2. To complete the implementation so that routes from router 1 are accepted, what must the engineer configure on router 2?

with import route targets 101:102 and 202:201

with import route targets 201:202 and 401:402

with export route targets 301:202 and 101:102

with export route targets 201:202 and 401:402

QUESTION 18

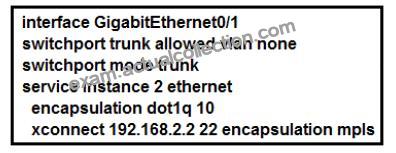

Refer to the exhibit.

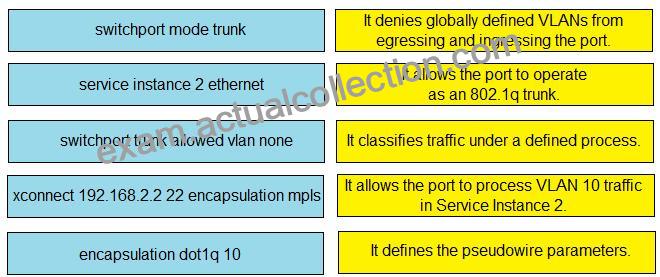

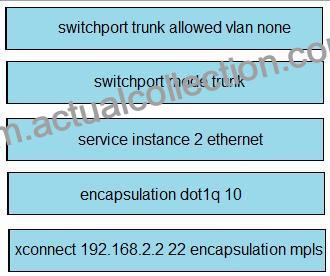

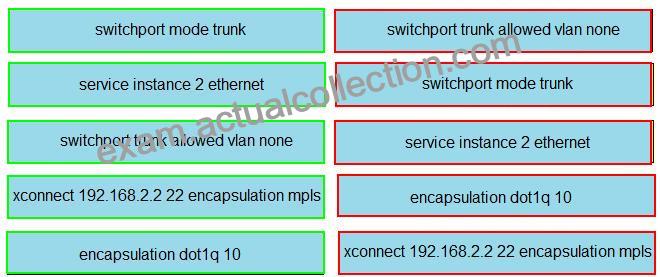

Drag and drop the EVC configuration items from the left onto the correct descriptions on the right.

QUESTION 19
Refer to the exhibit.

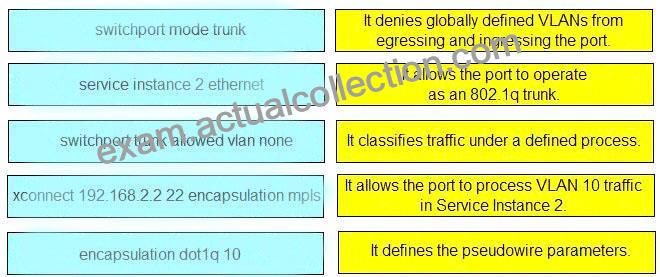

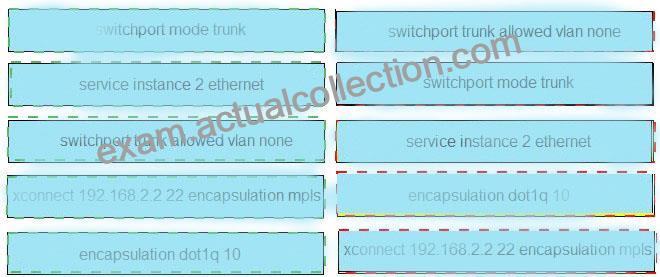

Drag and drop the EVC configuration items from the left onto the correct descriptions on the right.

QUESTION 20

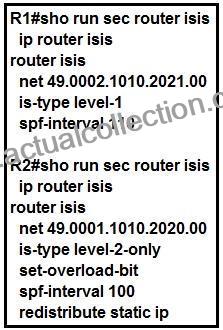

Refer to the exhibit. A technician is troubleshooting a connectivity issue and notices that there is no IS-IS adjacency between R1 and R2. What can the technician change to bring the IS-IS adjacency up?

Change R2’s net address to be in the same area as R1.

Change R1’s is-type to level-2-only

Change R1’s net address to be in the same area as R2.

Change R2’s configuration to no longer set the overload bit.

QUESTION 21
Which flavor of MPLS Layer 3 VPN has MPLS enabled on PE-CE links?

basic

CSC

inter-AS

AToM

VPLS

QUESTION 22
Refer to the exhibit. Which statement about this command is true?

It must be configured on each PE router to enable the PE routers to receive multicast traffic for this particular MVRF.

It is used to set the designated router on a link using PIM-SM.

It must be configured on the PE and CE router to enable MP-BGP to send labels for CSC.

It is used to set the router that will server as the root bridge for STP.

QUESTION 23

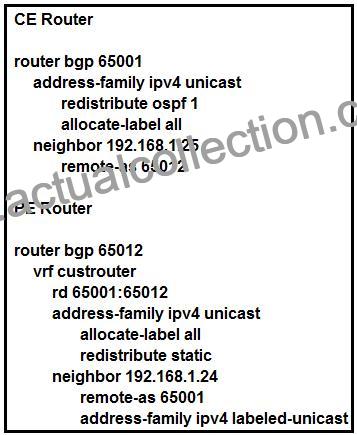

Refer to the exhibit.

The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC. Which additional task can you perform to complete the configuration?

Configure static routing on the CE router.

Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.

Change the rd value to 65001:65001 under the VRF section of the PE router.

Configure OSPF on the PE router.

QUESTION 24

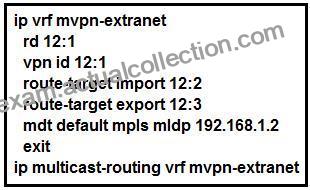

What is the effect of this configuration?

The mroute table is cleared.

Router 1 accepts multicast routes with a tag of 12:1

A Cisco MPLS TE tunnel is generated with 192.168.1.2 as the source IP address of router 1.

An LSP virtual interface tunnel is created.

QUESTION 25
What must match in the EVPN and L2VPN configuration mode when configuring EVPN native in a router?

interface

address family

bridge domain

EVI

QUESTION 26
An engineer is troubleshooting an EoMPLS circuit on a Cisco IOS XR router interface that removes a VLAN from the distribution layer. Which configuration should the engineer apply in order to accomplish the task?

interface GigabitEthernet 0/10.l2transport
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

interface GigabitEthernet 0/10.10
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 2/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
rewrite ingress tag translate 1-to-1 dot1ad 10
symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

QUESTION 27
While troubleshooting an AToM L2VPN service, a network consultant notices that the AC Layer 2 encapsulations are different. Which action should the consultant take in order to make the MPLS L2VPN work?

tag-rewrite on the ingress and egress PE router

interworking IP configuration on the last PE router before label disposition

nonrouted interworking setup to properly translate only the Layer 2 information from the AC

interworking IP configuration on both the AC terminations on the PEs

QUESTION 28
Refer to the exhibit. An organization is running H-VPLS on a network comprising four routers in a hub-and-spoke topology with R1 as the hub.
An engineer added a new spoke with multiple VCs to the network, and now traffic cannot flow properly.
How should the engineer update the configuration on R1 to correct the problem?

Disable spanning tree to allow loops to occur within the hub-and-spoke topology.

Disable split horizon to allow multiple VCs per spoke

Disable Cisco Discovery Protocol to allow MPLS to share labels between the designated spokes

Disable Cisco Discovery Protocol to allow for neighbor discovery

QUESTION 29
You try to configure MPLS VPN VRF Selection based on a source IP address on an interface that has VRF configured, but you receive an error.
Which action must you take to correct the problem?

Change the source IP address.

Add the IP address to the VRF table.

Remove the VRF from the interface.

Configure static routes for the VRF.

QUESTION 30

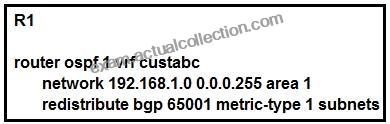

Refer to the exhibit.

Which statement describes the result of this configuration?

R1 redistributes BGP routes into the OSPF process of VRF custabc as E1 routes.

R1 redistributes BGP routes into the OSPF process of VRF custabc as E2 routes.

R1 mutually redistributes routes between BGP 65001 and the OSPF process of VRF custabc.

R1 redistributes BGP routes into the OSPF process of VRF custabc as OIA routes.

QUESTION 31
You try to configure MPLS VPN VRF Selection based on a source IP address on an interface that has VRF configured, but you receive an error.
Which action must you take to correct the problem?

Change the source IP address.

Add the IP address to the VRF table.

Remove the VRF from the interface.

Configure static routes for the VRF.

QUESTION 32
Which option is the primary purpose of central service MPLS VPNs?

provide customer access to provider resources while ensuring customers cannot communicate directly

provide the provider access to customer resources while ensuring customers cannot communicate directly

provide other service providers access to provider resources

provide other service providers access to customer resources

QUESTION 33
Which BGP feature causes to replace the AS number of originating router with the AS number of the sending router?

route reflectors

route dampening

confederations

AS override

QUESTION 34
While configuring the VRF Selection feature, you get an error message after typing the below statement:
Router(config)#no vrf selection source 172.16.0.0 255.255.0.0 vrf VRF1
Which action caused this message?

the entry of an inconsistent IP address and mask for VRF Selection

an attempt to configure a VRF instance on an interface that already has VRF Selection configured

an attempt to remove a VRF Selection entry that does not exist

an attempt to configure a VRF Selection table that does not exist

QUESTION 35
Which tool identifies the point of failure in a P2MP LSP from the ingress LSR?

Jitter TLV

SPAN

P2MP traceroute

P2MP ping

QUESTION 36
Refer to the exhibit. Which statement describes the result of this configuration?

R1 redistributes BGP routes into the OSPF process of VRF custabc as E1 routes.

R1 redistributes BGP routes into the OSPF process of VRF custabc as E2 routes.

R1 mutually redistributes routes between BGP 65001 and the OSPF process of VRF custabc.

R1 redistributes BGP routes into the OSPF process of VRF custabc as OIA routes.

QUESTION 37
What do EVPN single-active and all-active have in common?

They are default gateway redundancy options.

They are multihoming mechanisms used for CE devices.

They are used to provide single connection from a CE device to a service provider.

They are both roles that a designated router can take when MPLS is used with EVPN.
